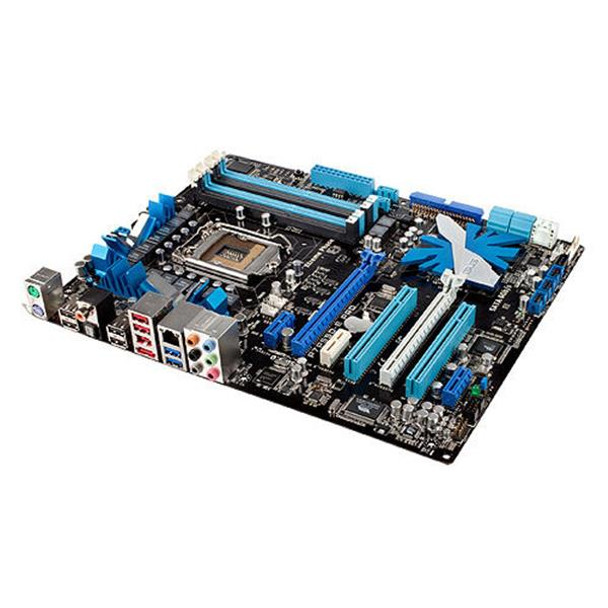

ASUS Asus P7P55D-E PRO Motherboard System Board Socket 1156 Intel P55 ATX RAID SAT

90-MIBBS0-G0EAY00Z - ASUS Asus P7P55D-E PRO Motherboard System Board Socket 1156 Intel P55 ATX RAID SAT

$442.50 $354.00
(You save $88.50)
SKU:
90-MIBBS0-G0EAY00Z
Condition:
Refurbished
Availability:
IN STOCK

FREE GROUND SHIPPING on all orders of $500 and above

100% Secure Checkout
24/7 Live Order Support
Lowest Price Guranteed
Fast & Same Day Shipping

* Prices and ETA can be changed anytime without any prior notice.

* Product Images are not for original stock item and may not match the SKU.
Kindly do your research and order as per listed SKU number.

Model
Manufacturer ASUS
Manufacturer Part # 90-MIBBS0-G0EAY00Z
Performance
Product Type System Board
Form Factor ATX
CPU Socket Type LGA 1156
Supported CPU(s) Intel Core i3 Processor
 Intel Core i5 Processor
 Intel Core i7 Processor
Supported CPU Technologies Intel Turbo Boost Technology
Chipset Intel P55 Express
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
 PC3-12800 (DDR3-1600)
 PC3-8500 (DDR3-1066)
Maximum Installed Memory 16 MB
Expansion Slots PCI-E 2.0 x1
 PCI-E 2.0 x16
Expansion Slots Details 2 x PCIe 2.0 x16 (single at x16 or dual at x8 / x8 mode)
2 x PCIe 2.0 x 1(5GT/s, blue slots)
1 x PCIe 2.0 x 1(2.5GT/s,gray slot)
2 x PCI
Storage Controller SATA 3.0 Gbps
Audio Controller VIA VT1828S
Network Gigabit Ethernet
Connectors/Ports Audio-In
 Audio-Out
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 USB 1.1
 USB 2.0
Connectors/Ports Details Back Panel I/O Ports
  • 1 x PS/2 Keyboard (Purple)
  • 1 x PS/2 mouse port (Green)
  • 1 x Coaxial S/PDIF Output
  • 1 x Optical S/PDIF Output
  • 1 x IEEE1394a
  • 1 x eSATA port
  • 1 x RJ45 port
  • 2 x USB 3.0/2.0 ports (blue)
  • 6 x USB 2.0/1.1 ports
  • 8-channel Audio I/O

    • Back Panel I/O Ports
  • 3 x USB connectors support additional 6 USB ports
  • 1 x IDE connector
  • 1 x IEEE 1394a connector
  • 1 x CPU Fan connector(s)
  • 1 x Power Fan connector(s)
  • 7 x SATA 3.0Gb/s connectors (blue/black)
  • 2 x SATA 6.0Gb/s connectors (gray)
  • 2 x Chassis Fan connector (1x4-pin, 1x3-pin)
  • Front panel audio connector
  • 1 x S/PDIF Out Header
  • 24-pin ATX Power connector
  • 1 x 8-pin ATX 12V Power connector
  • System Panel(Q-Connector)
  • 1 x MemOK! button
    		•
