ASUS

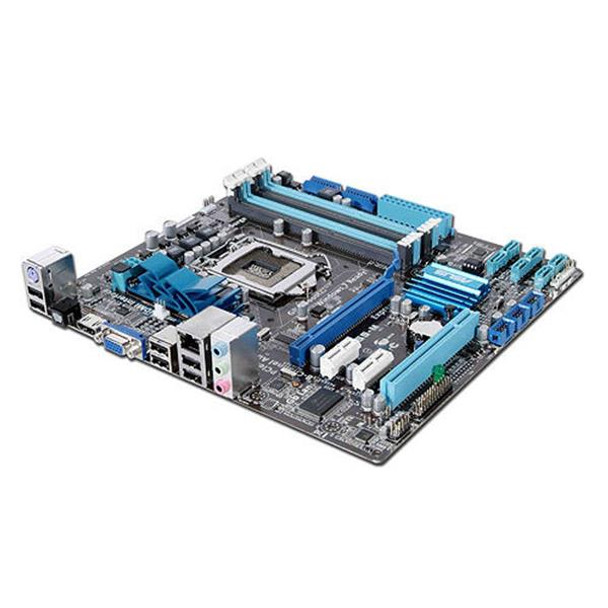

90-MIBBK3-G0EAY00Z - ASUS P7H55-M Intel H55 Core i7/i5/i3/Pentium Processors Support Socket 1156 micro-ATX Motherboard System Board

(No reviews yet) Write a Review
SKU:
90-MIBBK3-G0EAY00Z
Condition:
Refurbished
Availability:
IN STOCK
  • ASUS P7H55-M Intel H55 Core i7/i5/i3/Pentium Processors Support Socket 1156 micro-ATX Motherboard System Board
  • ASUS P7H55-M Intel H55 Core i7/i5/i3/Pentium Processors Support Socket 1156 micro-ATX Motherboard System Board
  • ASUS P7H55-M Intel H55 Core i7/i5/i3/Pentium Processors Support Socket 1156 micro-ATX Motherboard System Board
  • ASUS P7H55-M Intel H55 Core i7/i5/i3/Pentium Processors Support Socket 1156 micro-ATX Motherboard System Board
  • ASUS P7H55-M Intel H55 Core i7/i5/i3/Pentium Processors Support Socket 1156 micro-ATX Motherboard System Board
  • ASUS P7H55-M Intel H55 Core i7/i5/i3/Pentium Processors Support Socket 1156 micro-ATX Motherboard System Board
  • ASUS P7H55-M Intel H55 Core i7/i5/i3/Pentium Processors Support Socket 1156 micro-ATX Motherboard System Board
  • ASUS P7H55-M Intel H55 Core i7/i5/i3/Pentium Processors Support Socket 1156 micro-ATX Motherboard System Board
  • ASUS P7H55-M Intel H55 Core i7/i5/i3/Pentium Processors Support Socket 1156 micro-ATX Motherboard System Board
  • ASUS P7H55-M Intel H55 Core i7/i5/i3/Pentium Processors Support Socket 1156 micro-ATX Motherboard System Board
  • ASUS P7H55-M Intel H55 Core i7/i5/i3/Pentium Processors Support Socket 1156 micro-ATX Motherboard System Board
  • ASUS P7H55-M Intel H55 Core i7/i5/i3/Pentium Processors Support Socket 1156 micro-ATX Motherboard System Board
MSRP: $238.50
$190.80
— You save $47.70

Description

Model
Manufacturer ASUS
Manufacturer Part # 90-MIBBK3-G0EAY00Z
Performance
Product Type System Board
Form Factor Micro ATX
CPU Socket Type LGA 1156
Supported CPU(s) Intel Core i3 Processor
 Intel Core i5 Processor
 Intel Core i7 Processor
 Intel Pentium Processor
Supported CPU Technologies Intel Turbo Boost Technology
Chipset Intel H55 Express
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
 PC3-12800 (DDR3-1600)
 PC3-14900 (DDR3-1866)
 PC3-8500 (DDR3-1066)
Maximum Installed Memory 16 GB
Expansion Slots PCI-E 2.0 x1
 PCI-E 2.0 x16
Expansion Slots Details 1 x PCIe 2.0 x16
2 x PCIe 2.0 x1 (2.5GT/s, gray slots)
1 x PCI
Storage Controller SATA 3.0 Gbps
Audio Controller Realtek ALC887
Network Gigabit Ethernet
Connectors/Ports Audio-In
 Audio-Out
 Chassis Fan Connector
 CPU Fan Connector
 PS/2 Keyboard
 PS/2 Mouse
 RJ-45
 USB 1.1
 USB 2.0
Connectors/Ports Details Back Panel I/O Ports
  • 1 x PS/2 Keyboard/Mouse Combo port
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x S/PDIF Out (Optical)
  • 1 x LAN(RJ45) port
  • 6 x USB 2.0/1.1
  • 3 x Jack (8-channel) Audio I/O

    • Internal I/O Connectors
  • 3 x USB connectors support additional 6 USB ports
  • 1 x IDE connector
  • 6 x SATA connectors
  • 1 x CPU Fan connector (1x4-pin)
  • 1 x Chassis Fan connector (1x3-pin)
  • 1 x LPT connector
  • 1 x S/PDIF Out Header
  • Front panel audio connector
  • 1 x COM connector
  • 1 x Clear CMOS jumper
  • 1 x 24-pin ATX Power connector
  • 1 x 8-pin ATX 12V Power connector
  • System Panel
    		•
